Work Easily with Stochastic Libraries, SIPs and SLURPs

As described by Dr. Sam Savage in OR/MS Today, the simplest element of a coherent Stochastic Library is a Stochastic Information Packet or SIP, which is just a list of trial values for a single uncertain variable. An example might be 1,000 sample values, in a specific sequence, for the future price of oil at some point or interval of time. In a Monte Carlo simulation, trials will be drawn from the SIP in the order in which they were generated.

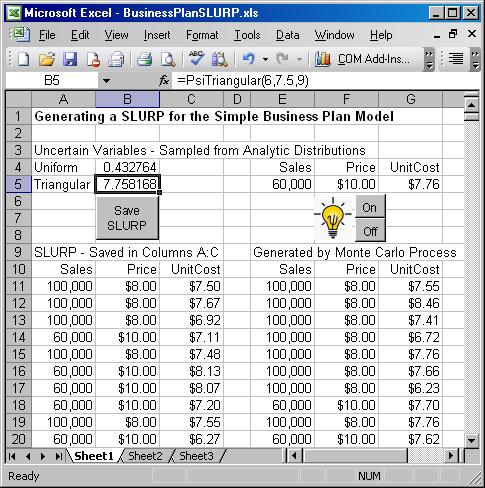

Analytic Solver: Example of SLURP creation

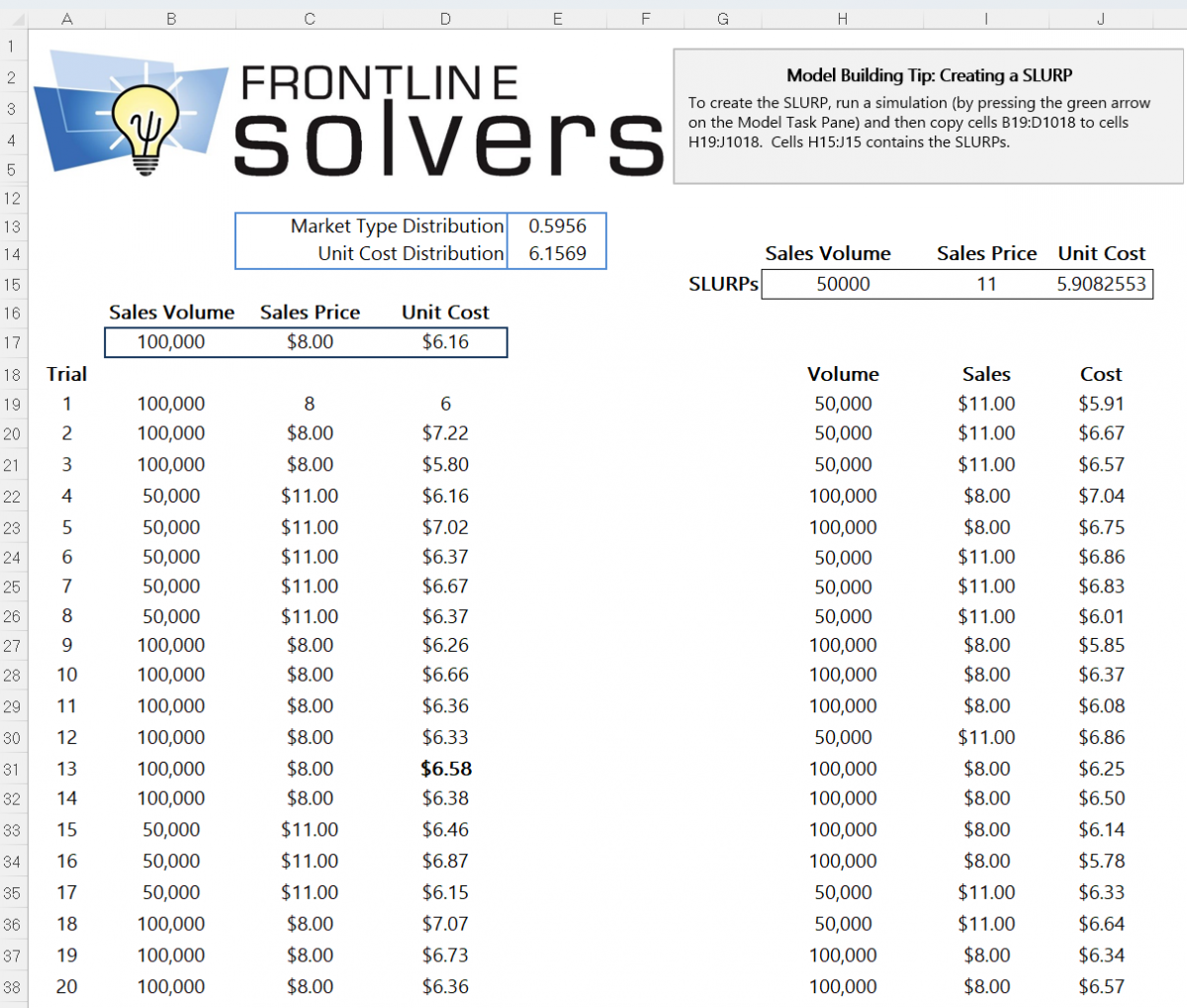

SLURP Creation Example

If the SIPs for several different uncertain variables are generated as a group, in a manner that preserves the statistical dependence between them, they may be combined into a Stochastic Library Unit, Relationships Preserved, or SLURP.  A SLURP is a table of trial values, where each column represents a specific uncertain variable, and each row represents a distinct trial.  The SLURP's uncertain variables may be dependent in ways not measured by traditional correlation.  But if a Monte Carlo simulation draws trials in the specific order given by the SLURP, this dependence will be reflected in the simulation model results.

SLURPs in Excel

On an Excel spreadsheet, a SIP is naturally represented by a column of cell values, and a SLURP is most easily represented by a two-dimensional table of cell values. Of course, SIPs and SLURPs could be stored in many other ways -- for example, a SLURP could be a table in a relational or multidimensional database, and the Excel Database Query feature could be used to bring the data into a spreadsheet model.

Risk Solver provides two PSI Distribution functions, PsiSip() and PsiSlurp(), that make it easy to work with SIPs and SLURPs. PsiSip() takes one argument: a cell range (usually a column) containing the trial values for one uncertain variable. PsiSlurp() takes two arguments: a two-dimensional cell range containing the SLURP data, and a column index (starting from 1) for the uncertain variable whose trials should be returned by the PsiSlurp() function.

Creating Stochastic Libraries

Of course, a Stochastic Library must first be created before it can be used. In some cases, you may have a data source from which you can draw SLURP data directly. For example, if you are working with demographic data such as age, family size, income, and taxes paid, you might be able to use a representative sample directly as a SLURP. But in many cases, an expert (perhaps like you) will have to select appropriate analytic probability distributions and their parameters, determine whether and how they should be correlated, and then generate the trial data through a Monte Carlo process.

Risk Solver is a great tool for creating Stochastic Libraries, as well as using them. It supports a wide range of analytic distributions, shifting and truncation of distributions, and rank order correlation of different distributions. When you run a simulation, the trial data is generated, and with the PsiData() function, you can easily save the trial data in a column on the spreadsheet -- this will create a SIP. Several PsiData() functions in adjacent spreadsheet columns will create a SLURP.
