This example illustrates how to use Analytic Solver Data Science's Exponential Smoothing technique to uncover trends in a time series. On the Data Science ribbon, from the **Applying Your Model** tab, select **Help -** **Examples**, then select **Forecasting/Data Mining Examples**, and open the example data set, **Airpass.xlsx**. This data set contains the monthly totals of international airline passengers from 1949-1960. After the example data set opens, click a cell in the data set, then on the Data Science ribbon, from the** Time Series** tab, select **Partition** to open the *Time Series Partition Data* dialog.

At Time Variable, select Month, and in the **Variables in the Partition Data** list, select Passengers. Click **OK** to partition the data into Training and Validation sets. (Partitioning is optional. Smoothing techniques may be run on full, unpartitioned data sets.)

Click the **Data_PartitionTS** worksheet, then on the Data Science ribbon, from the **Time Series** tab, select **Smoothing - Exponential **to open the *Exponential Smoothing *dialog.

Month has already been selected as the Time variable. Select Passengers as the Selected variable, and under Output Options, select Produce forecast on validation.

Click **OK** to apply the smoothing technique. The worksheets **ExponentialOutput **and **Exponential_Stored** are inserted immediately to the right of the **Data_PartitionTS** worksheet. For more information about the **Exponential_Stored **worksheet, see the** Tools -Scoring New Data** section.

Click the **ExponentialOutput **worksheet. The Time Plot of Actual Vs. Forecast (Training Data) chart shows that the Exponential smoothing technique does not result in a good fit, as the model does not effectively capture the seasonality in the data set. As a result, during the summer months, where the number of airline passengers are typically high, appear to be under forecasted (i.e., too low), and the forecasts for months with low passenger numbers are too high. Consequently, an exponential smoothing forecast should never be used when the data set includes seasonality. An alternative would be to perform a regression on the model, and then apply this technique to the residuals.

The following example does not include seasonality.

On the Data Science ribbon, from the **Applying Your Model** tab, select **Help - Examples**, then select** Forecasting/Data Mining Examples, **and open the example data set** Income.xlsx**. This data set contains the average income of tax payers by state. First partition the data set into Training and Validation Sets using** **Year as the* *Time Variable, and** **CA as the **Variables in the Partition Data**.

Click **OK** to accept the partitioning defaults and create the Training and Validation Sets.

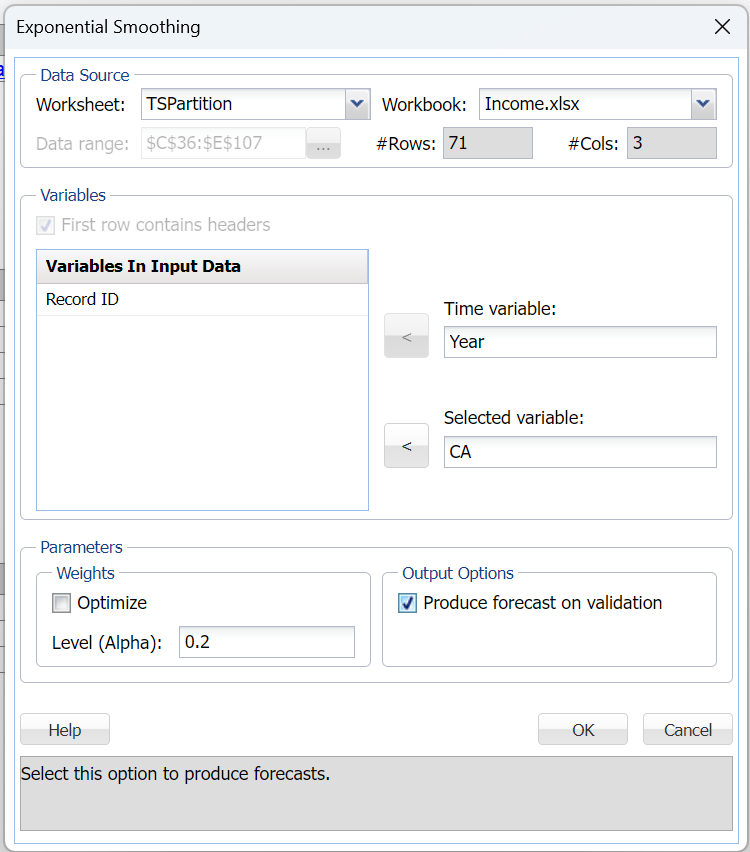

Select the **Data_PartitionTS** worksheet, then on the Data Science ribbon, from **Time Series** tab, select **Smoothing - Exponential **to open the *Exponential Smoothing *dialog.

Year has automatically been selected as the Time Variable. Select CA as the Selected variable, and under Output Options, select Produce forecast on validation.

The smoothing parameter (Alpha) determines the magnitude of weights assigned to the observations. For example, a value close to 1 would result in the most recent observations being assigned the largest weights, and the earliest observations being assigned the smallest weights. A value close to 0 would result in the earliest observations being assigned the largest weights, and the latest observations being assigned the smallest weights. As a result, the value of Alpha depends on how much influence the most recent observations should have on the model.

Analytic Solver Data Science includes the Optimize feature to choose the Alpha parameter value that results in the minimum residual mean squared error. It is recommended that this feature be used carefully, as it can often lead to a model that is over-fitted to the Training Set. An overfit model rarely exhibits high predictive accuracy in the Validation Set.

Click **OK** to accept the default Alpha value of 0.2. The worksheets **ExponentialOutput** and **Exponential_Stored** are inserted to the right of the **Data_PartitionTS** worksheet. For more information on the ** Exponential_Stored **worksheet, see the **Applying Your Model - Scoring New Data** section.

Click the **ExponentialOutput **worksheet and scroll down. The **Training Error Measures** and **Validation Error Measures** tables show a fitted model with an MSE of 166,936.72 for the Training Set, and an MSE of 9,182,228.9 for the Validation Set. These are fairly large numbers, which indicate that the model is not well fit.

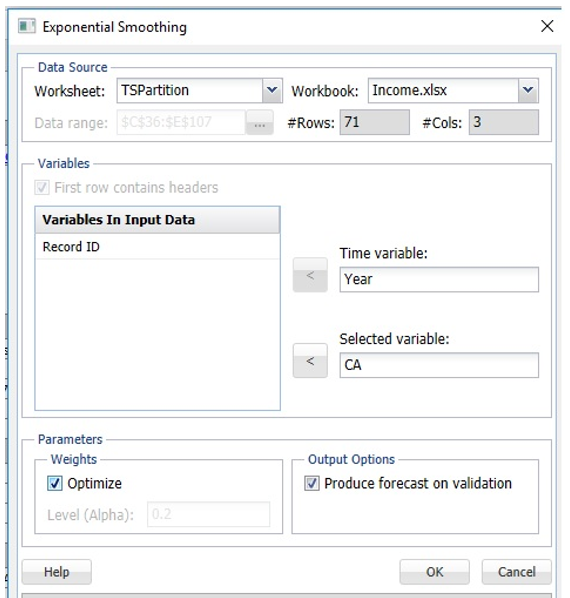

Click back to the **Data_PartitionTS** worksheet, then on the Data Science ribbon, from the **Time Series** tab, select** Smoothing - Exponential Smoothing **to run the technique a second time. Again, select CA as the Selected variable, and under Output Options, select** **Produce forecast on validation. Under Parameters - Weights, select Optimize, then click** OK**.

Click the **ExponentialOutput1 **worksheet. Analytic Solver Data Science used an Alpha = 0.9976 that resulted in an MSE of 0.12655 for the Training Set, and an MSE of 2735.153 for the Validation Set -- much smaller values than when an Alpha = 0.2 was used. (Using the Optimize algorithm results in a much better model.)
